Insulator Range
Bushing Range
Transformer Range

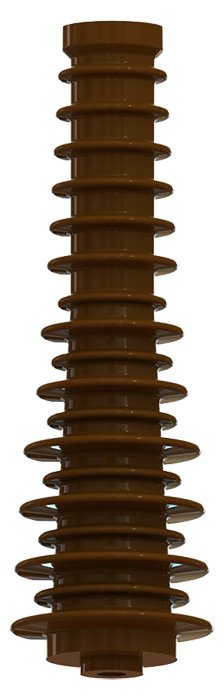

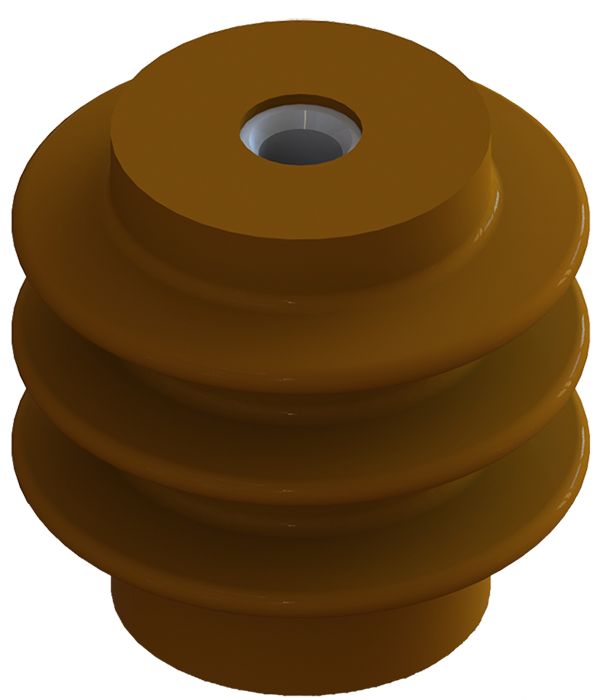

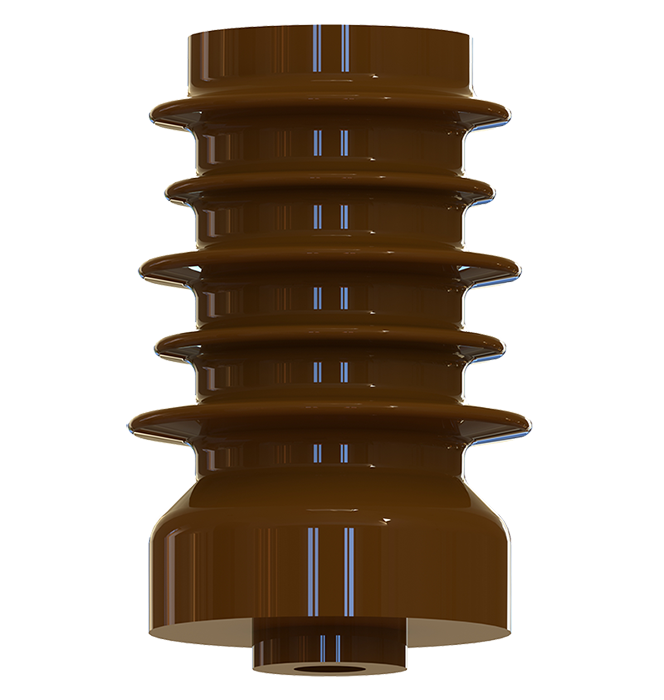

Post Insulator
Nominal Voltage:
7,2 kV to 72 kV
Bending strength
: 2 kN to 12 kN
Use
: Indoor
Outdoor use (Contact us)
Compute
your
insulator
Download the file (PDF)

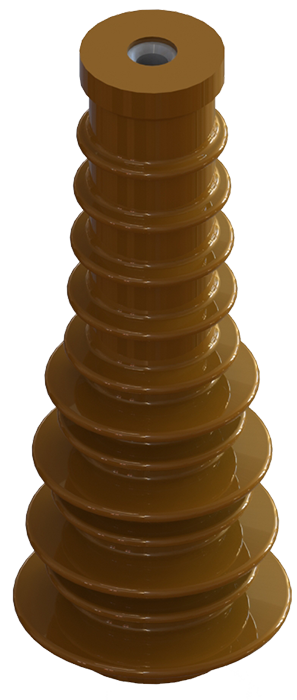

Capacitive Insulator
Nominal Voltage
: 7.2 kV to 36 kV
Bending strength
: 2 kN to 4 kN
Use
: Indoor
Compute
your
insulator
Download the file (PDF)

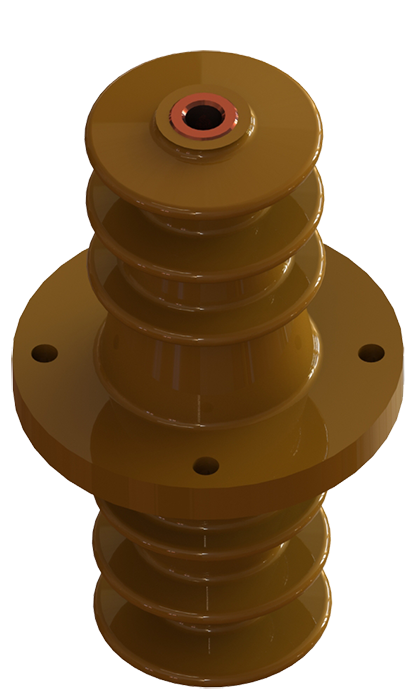

Indoor use
Nominal Voltage
: 7.2 kV to 24 kV
Nominal Current
: 250 A to 1250 A
Use
: Indoor
Electric stress control
: depending on Version
Compute
your
bushing
Download the file (PDF)

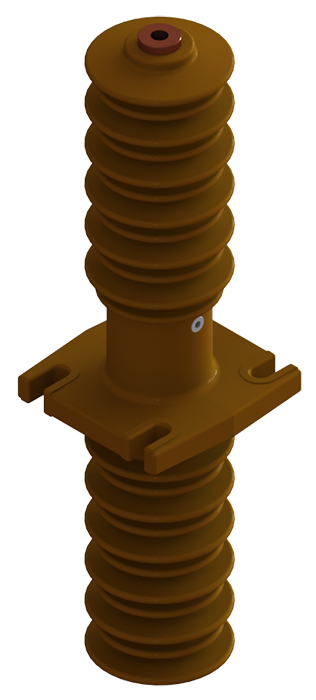

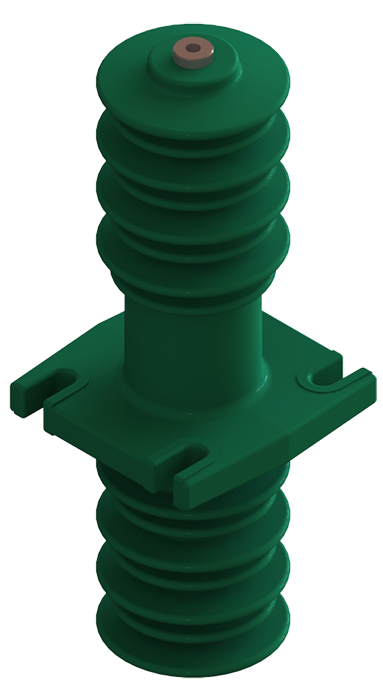

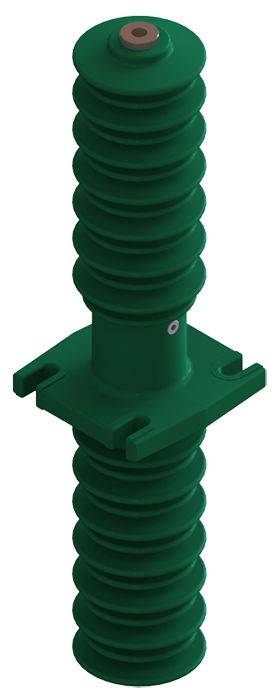

Outdoor use
Nominal Voltage
: 7.2 kV to 24 kV
Nominal Current
: 400 A to 1250 A
Use
: Outdoor
Electric stress control
: depending on Version
Compute
your
bushing
Download the file (PDF)

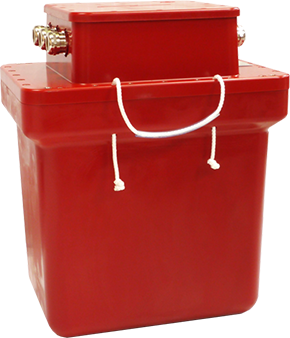

TMD ®
Primary Voltage
: 3,000 V to 5,500 V
Secondary Voltage
: 237 V to 410 V
Power
: 2 to 48 kVA
Coupling
Single phase
Three phase

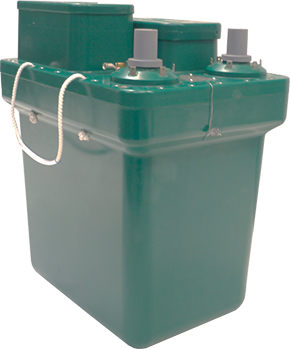

Distribution Box
Mains Voltage
: 3,000 V to 5,500 V
Nominal Current
: 130 A
Integrated VDS
Optional Locking
Function:
TMD Power Supply - Junction - Branch (Y) - Earthing Module - Insulation Module
High Insulation
Primary Voltage
: 230 V to 400 V Adjustment +- 5%
Secondary Voltage
: 237 V to 410 V
Power
: 12, 18, 36 kVA
Primary/Secondary Insulation
Test Voltage 50 kV/1min
Lightning Impulse 125 kV
Low Voltage
Primary Voltage
: 127 V to 970 V
Secondary Voltage
: 127 V to 970 V
Power
: 2 to 48 kVA
Coupling
Single phase
Three phase
Applications:
Long Distance Public Lighting
Private Distribution on Large Site
Sports Event Lighting Power Supply
Applications:
GSM Installation Insulation
On HVB Pylon
ERDF power supply on disturbed site
Applications:
Remote Power Supply
Low Voltage (950V)
Private Distribution on Large Site
